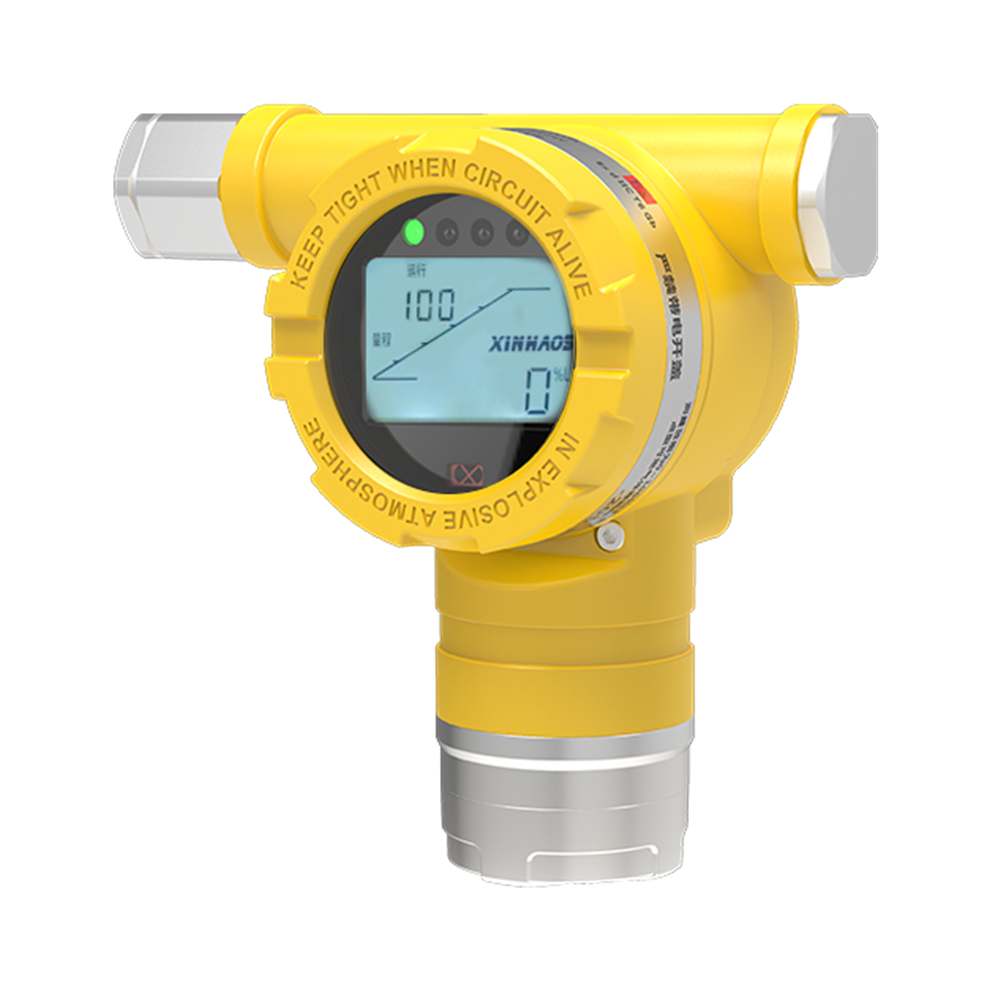

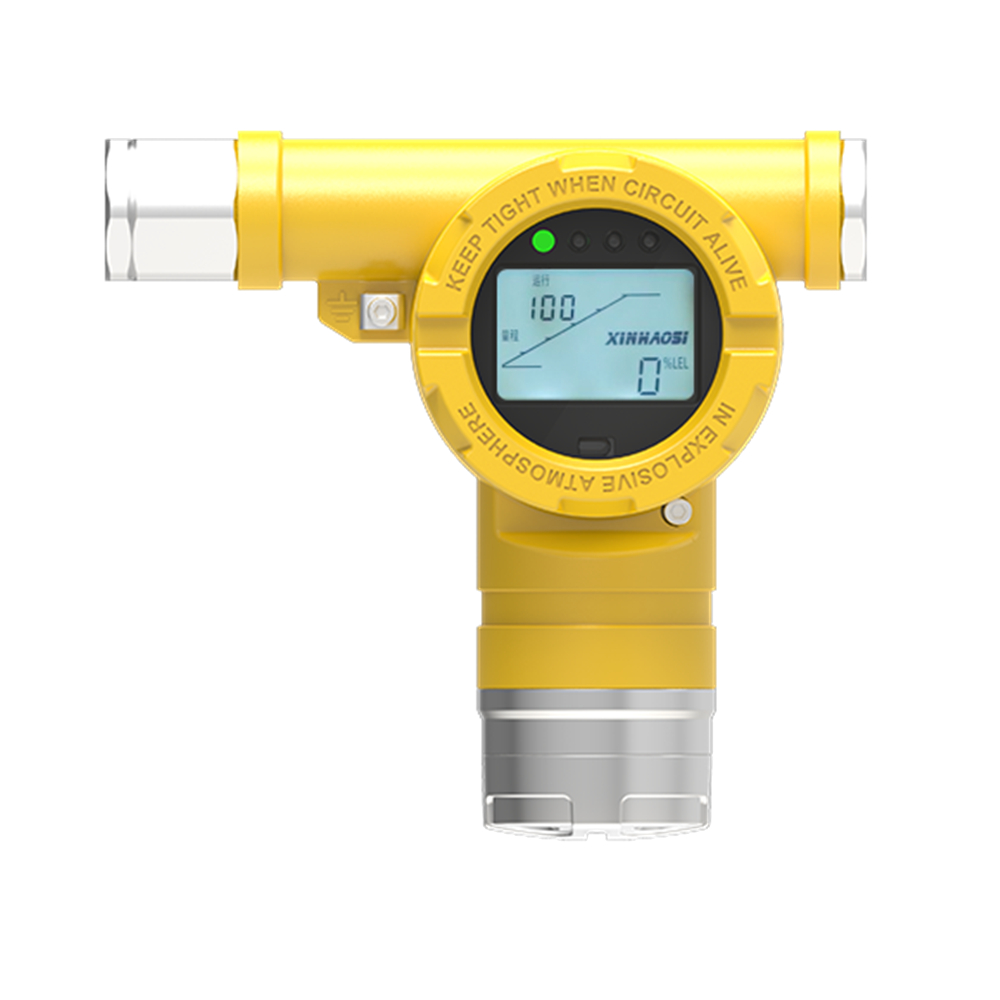

The GTYQ-XP3000 is a durable explosion proof combustible gas detector designed for long-term stable monitoring in harsh industrial environments. It adopts an explosion and dust ignition proof structure, complying with international safety standards for flammable gas detection. The dual-wire outlet design simplifies wiring and installation, making it suitable for large-scale deployment in industrial parks and petrochemical bases. Its digital sensor assembly supports plug-and-play replacement without on-site calibration, ensuring consistent detection performance and reducing maintenance workload. With an IP66 protection grade, it resists dust, moisture and water spray, maintaining stable operation in severe working conditions. The detector is equipped with an LCD screen to display real-time gas concentration values, enabling on-site operators to quickly grasp working status. It supports interchange with 3/4-wire 4-20mA detectors from other manufacturers, facilitating system upgrades and compatibility. It is widely used for natural gas and LNG monitoring, providing a cost-effective and reliable solution for industrial safety monitoring.
| Model | GTYQ-XP3000 |
| Measuring gas | Combustible gases (Methane, propane, isobutane, hydrogen, etc.) |
| Measuring type | Diffusion type |
| Measuring method | Catalytic |
| Measuring Range | 0–100% LEL |
| Response time | < 15sec / 90% scale |
| Accuracy | ±3% / Full Scale |
| Operation mode display | Normal / Alarm / Trouble LED |
| Measuring value display | Digital tube |
| Power | 24V DC nominal, 18 to 31V DC |
| Alarm signal output | Light and sound output / 50mA |
| Output signal | XBUS 2 wire / Analog: 4-20mA |
| Conduit connection | Standard: 2 × M26 × 1.5P Option: FPT3/4", NPT3/4" |
| Mounting type | Wall / Pole / Ceiling mount |
| Operating temperature | -40°C ~ +70°C |
| Operating humidity | 5 to 95% RH (Non-condensing) |
| Housing Material | Aluminum alloy / Option: Stainless steel |
| Dimensions | 172(W) × 161(H) × 79(D) mm |
| Explosion Proof | Ex db IIC T6 Gb |
| Certification | Refer to website |
| Sensor Type | Measuring Gas | Measuring Range | Operating Temperature | Typical Life | Response Time |
| Catalytic Type | Combustible gases | 0–100% LEL | -40 ~ +70°C | 36 months | <15sec / 90% scale |
| Catalytic Type |
📈 Linear Output: Output signal shows a good linear relationship with gas concentration, enabling precise concentration readings. |
| 🔒 High Stability: Minimal performance fluctuations during long-term use, ensuring reliable detection results. | |
| ⚡ High Sensitivity & Fast Response: Quickly captures gas concentration changes and triggers timely alerts. | |
| 🌐 Broad-Spectrum Capability: Detects most flammable gases and flammable vapors (e.g., hydrogen (H₂), methane (CH₄), propane (C₃H₈), ethanol vapors, etc.). | |
| 🛡️ Poisoning Resistance & Low Consumption: Exhibits certain tolerance to common poisoning substances (e.g., silicon, lead compounds), with a long service life and low attrition rate. |
