The Handheld Uncooled Infrared Gas Leak Detector redefines portable gas inspection with its integrated infrared thermal imaging and TDLAS laser technology, delivering both visual and quantitative detection capabilities for industrial safety applications. Designed for field use in petrochemical plants, refrigeration systems, and natural gas facilities, it offers ultra-fast 0.5-second response and non-contact detection up to 20 meters, minimizing operator exposure to hazardous environments.

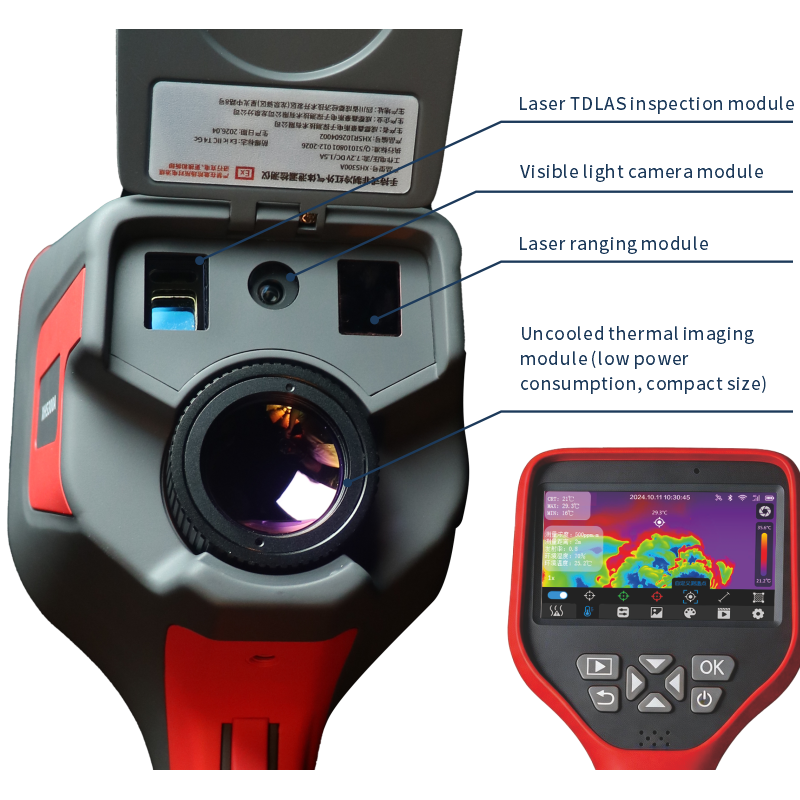

With support for methane, VOCs, and multiple refrigerants, the device enables broad-spectrum gas leak visualization through real-time gas cloud imaging. It features a high-performance uncooled VOx detector, laser ranging, and Beidou positioning for precise leak location, alongside multi-mode display and wireless data transmission for flexible on-site use. Certified explosion-proof and IP54 rated, this detector provides reliable, intelligent, and user-friendly gas safety monitoring solutions for energy, utilities, and industrial sectors worldwide.
| Model | IR-2610 Handheld Uncooled Infrared Gas Leak Detector | |
| Thermal Imaging Parameters | Detector Type | Uncooled VOx detector |
| Detector Resolution | 640 × 512 | |
| Spectral Range | 7.0 ~ 8.5 μm | |
| Thermal Sensitivity | 25mK | |
| Frame Rate | 25Hz | |
| Image Display | Display | 4.3-inch touchscreen (800 × 480) |
| Visible Camera | 5 MP | |
| Imaging Modes | Infrared, visible light, picture-in-picture, detail enhancement | |
| Color Palettes | 10 types | |
| Temperature Measurement | Temperature Measurement Range | -20°C to +150°C |
| Temperature Accuracy | ±2% or ±2°C | |
| Measurement Modes | Point, line, and area measurement; center point, cold/hot spot temperature tracking | |
| Temperature Calibration | Supports emissivity and ambient temperature correction | |
| Gas Concentration Measurement | Target Gas | Methane (CH4) |
| Detection Distance | Within 20 m | |
| Measurement Range | 0 ~ 50,000 ppm·m | |
| Response Time | 0.5s | |
| Gas Cloud Imaging | Detectable Gases | Methane, nitrous oxide, sulfur dioxide, phenol, ethyl acrylate, isooctyl acrylate, refrigerants (R13, R13B1, R123, R125, R134A, R417A, R422A, R508A) |
| Others | Laser | Laser ranging and laser indication |
| Alarm Modes | Gas leakage alarm and temperature alarm | |
| Data Storage | Supports image and video storage | |
| Explosion-proof Rating | Ex ic II C T4 Gc | |
