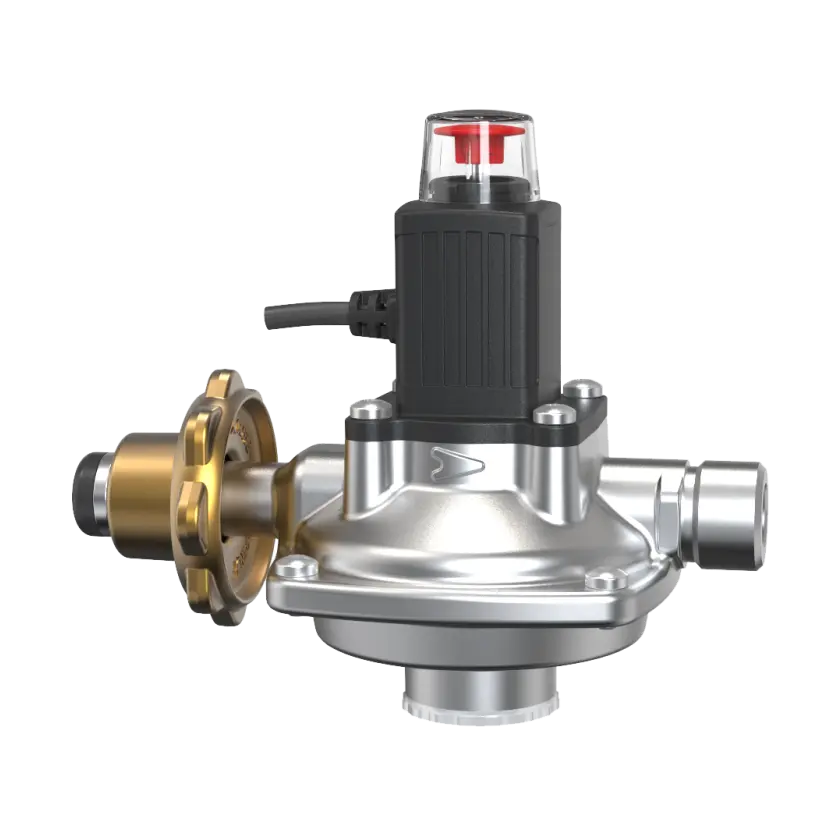

The JYT0.6-1/2 Bottled LNG Regulator integrates pressure regulation for bottled LNG systems, suitable for households and small commercial establishments. It fits propane/butane-based LNG, with 0.03~1.56MPa inlet pressure and 2.80kPa ± 0.50kPa outlet pressure, ensuring stable combustion. Rated flow rate 0.6m³/h meets daily gas needs. M22×1.5 inlet and G1/2 FPT outlet are standard, enabling easy installation. Its aluminum body and copper connector offer corrosion resistance; 8-year service life reduces maintenance costs. Lightweight (0.43kg) for manual installation. DC9V-12V working voltage, <1.5A current and <1s closing time ensure efficiency. Operating at (-20 ~ +45)°C, 10%~93%RH, it adapts to diverse environments, providing safe, reliable LNG usage protection.
| Parameter Details | |
|---|---|
| Applicable Gas | Petroleum liquefied gas with main components of propane/butane |
| Inlet Pressure | 0.03 ~ 1.56 MPa |
| Outlet Pressure | 2.80kPa ± 0.50kPa |
| Rated Flow Rate | 0.6m³/h |
| Inlet Connection | M22×1.5 right |
| Outlet Connection | G1/2 FPT |
| Service Life | 8 years (typical) |
| Material | Aluminum body + copper connector |
| Weight | 0.43kg |
| Working Voltage | DC9V - 12V |
| Working Current | <1.5A |
| Closing Time | <1s |
| Working Environment | Temperature: (-20 ~ +45)°C, Humidity: 10%RH ~ 93%RH, Pressure: (86 ~ 106)kPa |
