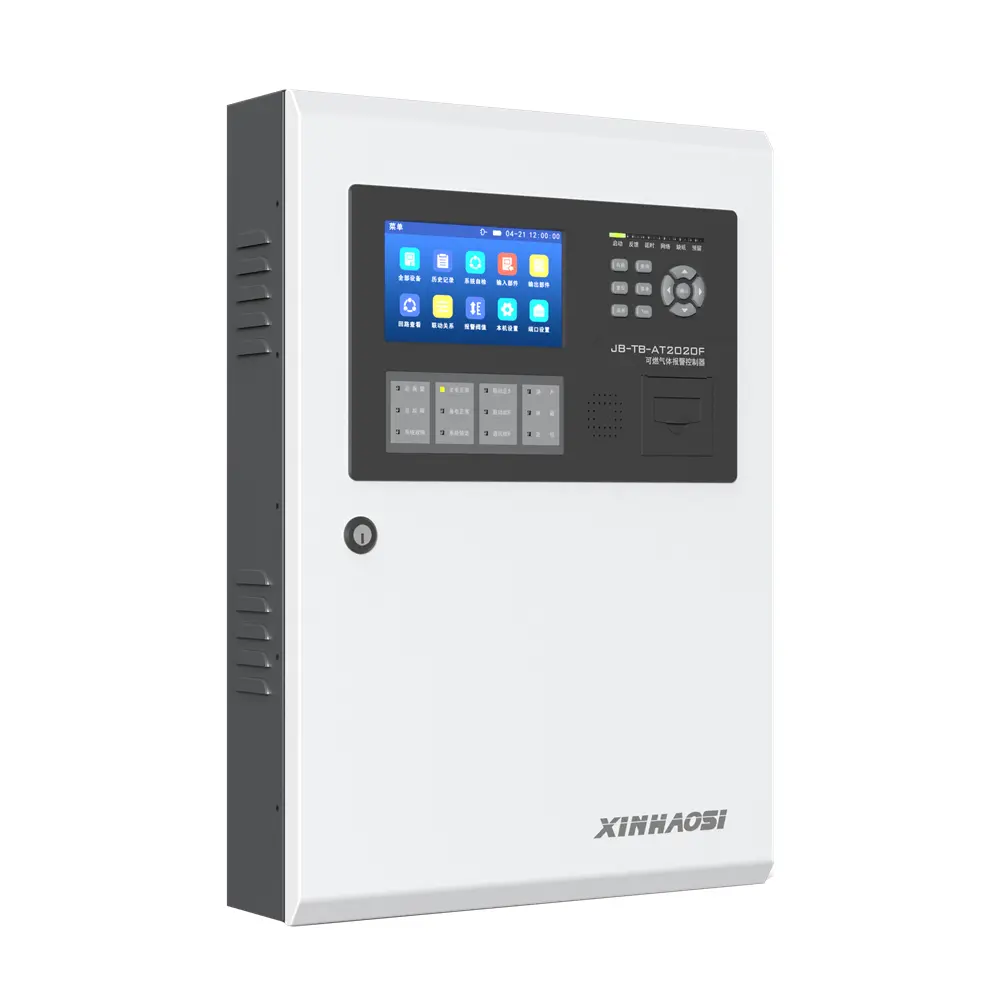

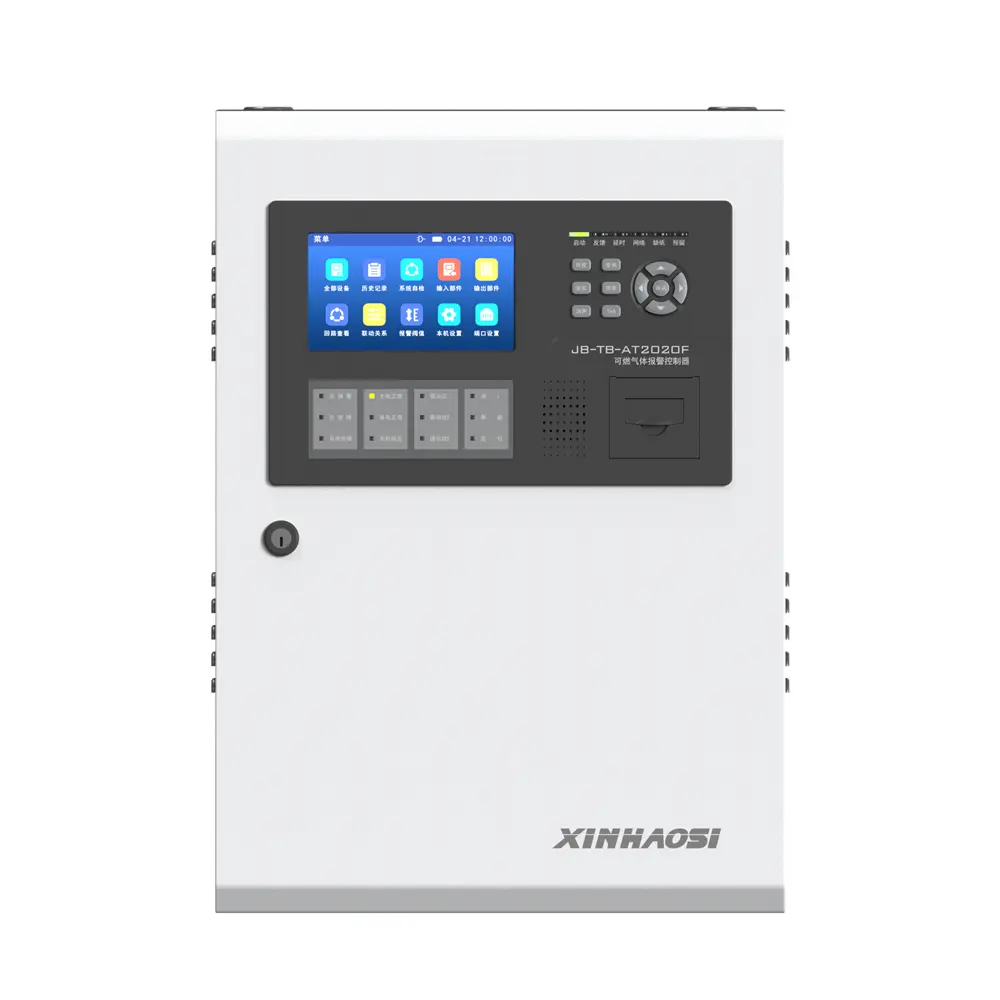

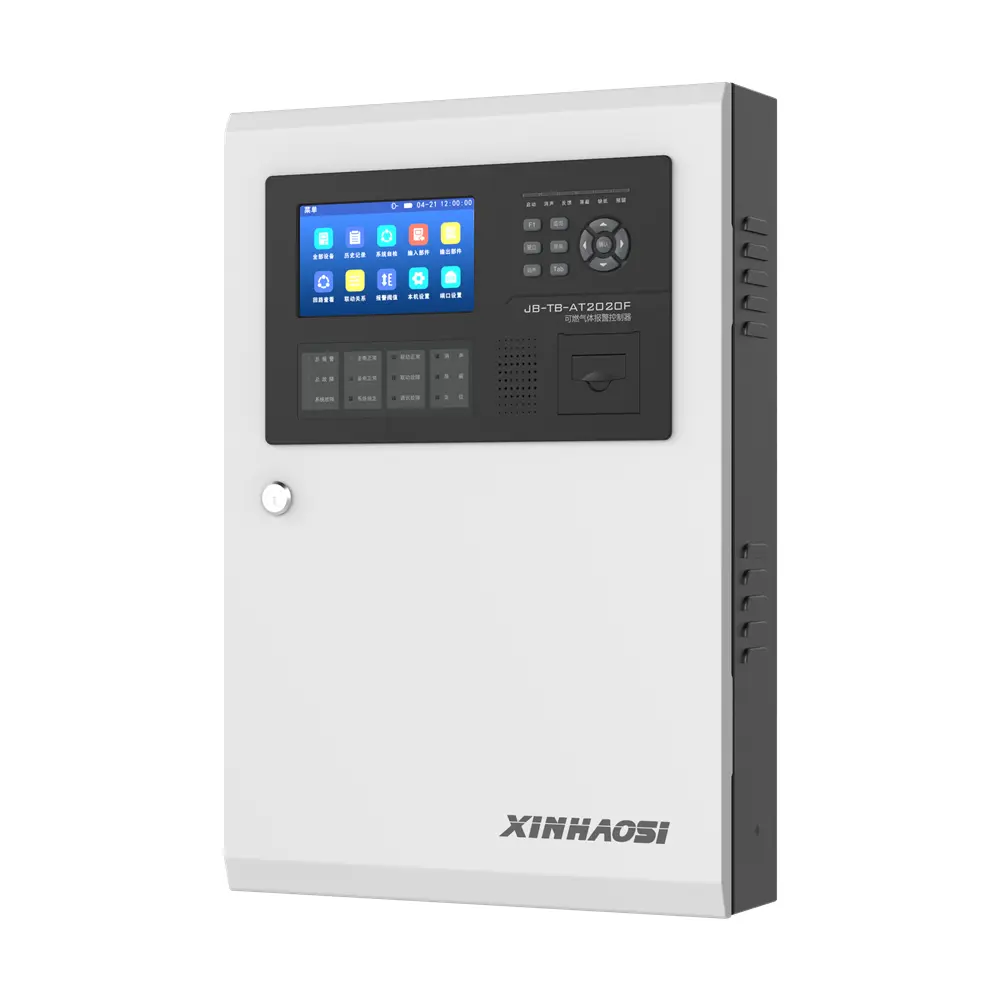

OEM JB-TB-AT2020F Gas Detector Controller Supplier, Manufacturers

1 / 3

OEM JB-TB-AT2020F Gas Detector Controller Supplier, Manufacturers

Send Inquiry

Product Description

Gas Detector Controller is a high-end gas monitoring device with comprehensive functions and excellent performance, specially designed for large-scale industrial projects and high-demand monitoring scenarios such as large workshops, chemical plants and power stations.

7-Inch TFT Color Display

Equipped with a large-size graphic interface featuring ultra-clear display effects and rich content, supporting detector installation location labeling for intuitive monitoring.

Flexible Configuration

Supports independent alarm point settings for zones and objects, allowing customizable configurations based on specific area monitoring requirements.

Simple Wiring & XBUS Protocol

Utilizes XBUS 2/4 wire protocol for easy and flexible wiring, minimizing on-site installation difficulty and long-term maintenance costs.

Built-in Printer

Features a high-performance printer for real-time printing of monitoring reports, facilitating effortless data archiving, inspection, and traceability.

Rainproof & Multi-Mounting

Professional rainproof design ensures stable operation in harsh environments. Supports wall-mounted and rack-mounted installation methods.

IoT Wireless Transmission

Optional wireless gateway enables remote monitoring, data analysis, and instant alarm notifications via WiFi, NB-IoT, or 4G networks.

Specifications

Parameter	Specification Details
Model	JB-TB-AT2020F
Working voltage	AC 170V - AC 260V / 50Hz
Typical power	18W Max (controller only)
Backup battery	Lead-acid battery
Display	7" TFT graphic LCD display
Communication	XBUS / HBUS
Mounting type	Wall / Rack
Relay output	Built-in three groups of passive programmable external control outputs (DC24V/2A)
Output type	Hold / Pulse (Adjustable)
Compatible detector	XBUS 2/4 wire and HBUS 4-wire detectors
Transmission distance	1500m Max
Capacity	1000 channels Max
Circuit	5
Size	605(W) x 430(H) x 120(D) mm
Wireless transmission	Option: wifi / NB / 4G
Language	English / Chinese

Frequently Asked Questions

What types of industrial environments is this gas detector controller designed for?

This controller is specifically designed for high-demand, large-scale industrial projects. It is ideal for monitoring safety levels in large workshops, chemical plants, power stations, and other hazardous environments.

Does the device support remote monitoring and wireless data transfer?

Yes, the device supports an optional wireless gateway. This enables IoT transmission via WiFi, NB-IoT, or 4G, allowing for real-time remote monitoring, data analysis, and automatic alarm notifications.

What are the supported communication protocols and maximum transmission distance?

The controller supports XBUS and HBUS communication protocols. It is compatible with XBUS 2/4-wire and HBUS 4-wire detectors, reaching a maximum transmission distance of up to 1500 meters.

How does the independent alarm configuration function work?

The controller allows users to flexibly configure independent alarm points for specific zones and targets. This ensures customized security thresholds depending on individual zone hazard requirements.

What installation and structural protection features does it offer?

The device features a professional rainproof design to protect internal electrical components in humid or rainy environments. It supports both wall-mounted and rack-mounted installation methods to adapt to different layouts.

How is monitoring data outputted and archived?

The controller features a 7-inch TFT color graphic LCD for real-time data display. Additionally, it has a built-in high-performance printer to print physical monitoring reports for audit, traceability, and archiving purposes.
